Harmar Pinnacle Stair Lift HD

Product Review
(0)
(0)

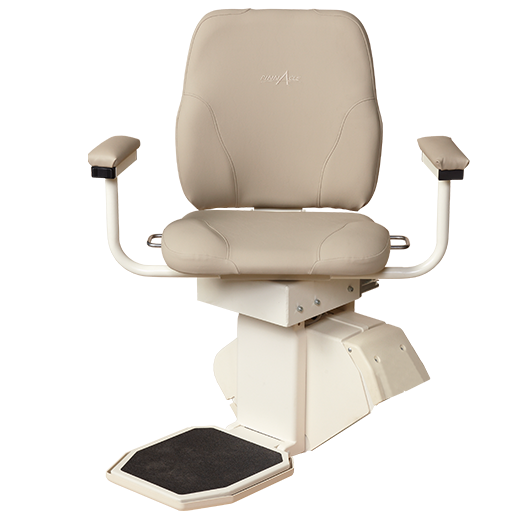

The Pinnacle Heavy Duty Stair Lift offers a high-backed, contoured 24" wide seat which ensures a comfortable and secure ride. The sturdy, stationary armrests and reinforced footrest add stability for safer transfers. It slides out from wall as it pivots at top landing. As with all Pinnacle stair lifts, the HD model is engineered to the highest industry standards and designed for optimal comfort, convenience and aesthetics. Extending the many benefits of the Pinnacle’s patented Worm Drive, this stair lift features a premium ride, little to no maintenance, comfortable seating, and ease of access with a 85 degree swivel - and, with extraordinary lifting capacity.
Drive TypeHelical Worm Drive
Battery PoweredYes
Self InstallableYes
Basic Installation IncludedNo
Standard Capacity600 lb
Max Track Length, Standard15.5'
Max Track Length, Optional40'
Track MaterialClear Anodized Aluminum
Rail Angle, Min32°
Rail Angle, Max52°
Seat Width24"
Seat Depth16"
Swivel SeatYes
Flip-Up SeatYes
Flip-Up ArmrestsNo
Call Stations Included2 Wireless
Constant Pressure ControlsYes
Footrest Safety SensorYes
Digital Diagnostics DisplayNo
Warranty3-Year on Components, 10-Year on Rack , 1-Year on Batteries
Key LockYes
Available Options
  • Track Lengths Selection: 15' (180") is Standard *
    • option

      * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.

      $0.00

      spacer
    • No Image

      15' (180") of Track

      $0.00

      spacer
    • No Image

      Length in inches if Shorter than 180" (allow +7" for entry/exit)

      $0.00

      spacer
    spacer
  • Additional Track (Maximum 70' Including the 15' Standard Track)
    • No Image

      Up to 3' of Additional Track

      $250.00

      spacer
    • No Image

      Up to 5' of Additional Track

      $393.00

      spacer
    • No Image

      Up to 7'9" (93") of Additional Track

      $536.00

      spacer
    spacer
  • Additional Brackets (comes with standard)
    • No Image

      Standard Brackets

      $29.00

      spacer
    • No Image

      Tall Brackets

      $29.00

      spacer
    spacer
  • Options
    • No Image

      Track Cut to Custom Length (Required for any track cut)

      $143.00

      spacer
    • No Image

      Key Lock on Chasis

      $143.00

      spacer
    • No Image

      Seatbelt Extension

      $100.00

      spacer
    • No Image

      Manual Lowering Tool

      $50.00

      spacer
    spacer
  • Call Stations
    • No Image

      Top & Bottom Call-Send Stations

      $0.00

      spacer
    spacer
  • Orientation (looking UP the staircase)
    • No Image

      The stair lift will be on the left

      $0.00

      spacer
    • No Image

      The stair lift will be on the right

      $0.00

      spacer
    spacer
  • Installation
    • No Image

      NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout

      $0.00

      spacer
    • No Image

      Self Installation

      $0.00

      spacer
    • No Image

      Nationwide Installation

      $599.00

      spacer
    • No Image

      Nationwide Installation and Measurement Service

      $749.00

      spacer
    • No Image

      Double Stair Lift Installation Service - Per Stair Lift

      $437.50

      spacer
    • No Image

      Stair Lift Removal and Disposal

      $499.00

      spacer
    spacer
  • Installation Special Cases
    • No Image

      Installation On Concrete, Steel, or Tile Stairs

      $300.00

      spacer
    • No Image

      Installation In Remote or Limited Access Location

      $345.00

      spacer
    spacer
  • Measurements
    • No Image

      Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.

      $0.00

      spacer
    • No Image

      1. Overall length

      $0.00

      spacer
    • No Image

      2. Top stair to bottom stair

      $0.00

      spacer
    • No Image

      3. Staircase width

      $0.00

      spacer
    • No Image

      4. Bottom clearance

      $0.00

      spacer
    • No Image

      5. Rise of one step

      $0.00

      spacer
    • No Image

      6. Tread of one step

      $0.00

      spacer
    • No Image

      7. Diagonal

      $0.00

      spacer
    • No Image

      8. Door at the top

      $0.00

      spacer
    • No Image

      Need help measuring? Please see our "How to Measure" page.

      $0.00

      spacer
    spacer
