Harmar Pinnacle Stair Lift, 300 lb. with Folding Rail

Product Review
(0)
(0)
The Pinnacle SL300 Stair Lift is competitively priced with plenty of value. Very compact, it runs smoothly, and requires little to no maintenance.

The Pinnacle Stair Lift has an established reputation as an industry leader for its innovative design, solid performance and reliability. Its patented drive system serves as the cornerstone that makes this stair lift different from all others on the market.

The SL300 gives you peace of mind knowing its efficient motor offers extended performance during power loss, up to 40 trips up and down. Owners of this stair lift will enjoy a smooth stable ride due to its patented Helical Worm Gear and Nylon Polymer Gear Rack. Pinnacle is the most compact of stair lifts, folding closer to the wall so others can pass easily.

Harmar's exclusive automatic and mechanical folding rail removes obstructions and trip hazards at the lower landing area. Its operation is automatic, the user does not need to stop or have someone else assist. And since it’s mechanical, there are no additional switches or controls.
Drive TypePolymer Worm / Worm-Rack
Battery PoweredYes
Self InstallableYes
Basic Installation IncludedNo
Standard Capacity300 lb
Max Track Length, Standard15.5'
Max Track Length, Optional70'
Unit Footprint, Parked13.6"
Rail Angle, Min32°
Rail Angle, Max45°
Seat Width19"
Seat Depth16"
Swivel SeatYes
Flip-Up SeatYes
Flip-Up ArmrestsYes
Constant Pressure ControlsYes
Footrest Safety SensorYes
Digital Diagnostics DisplayNo
Key LockYes

...more images

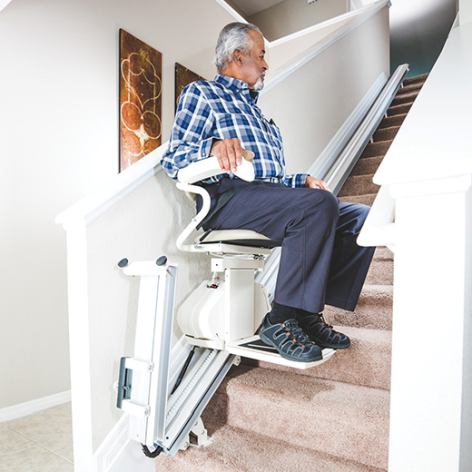

  • Person Riding Up the Stairs

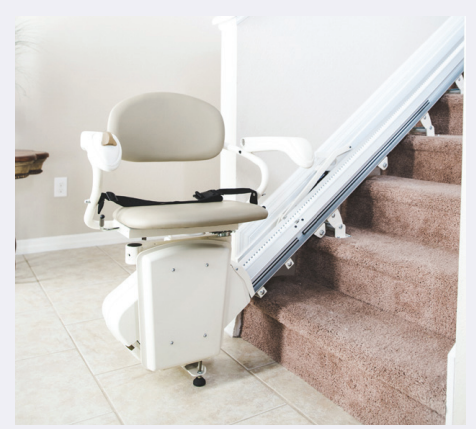

  • Parked at Bottom

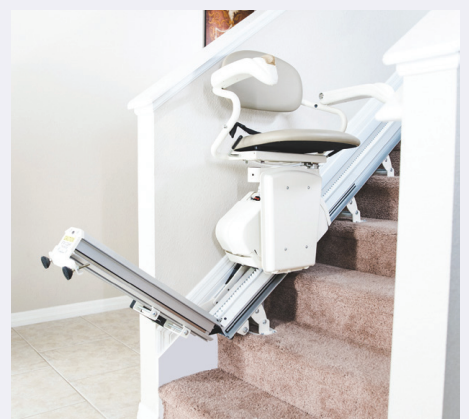

  • Folding Rail at Bottom Raising

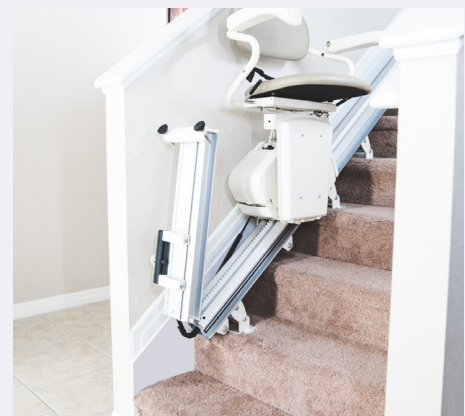

  • Folding Rail Fully Lifted to Clear Access at Bottom of Stairs
Available Options
  • Track Lengths Selection: 15' (180") is Standard *
    • option

      * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.

      $0.00

      spacer
    • No Image

      15' (180") of Track

      $0.00

      spacer
    • No Image

      Length in inches if Shorter than 180" (allow +7" for entry/exit)

      $0.00

      spacer
    spacer
  • Additional Track (Maximum 70' Including the 15' Standard Track)
    • No Image

      Up to 3' of Additional Track

      $215.00

      spacer
    • No Image

      Up to 5' of Additional Track

      $358.00

      spacer
    • No Image

      Up to 7'9" (93") of Additional Track

      $500.00

      spacer
    spacer
  • Additional Brackets (comes with standard)
    • No Image

      Standard Brackets

      $29.00

      spacer
    • No Image

      Tall Brackets

      $29.00

      spacer
    spacer
  • Options
    • No Image

      Seat Belt

      $0.00

      spacer
    • No Image

      Track Cut to Custom Length (Required for any track cut)

      $136.00

      spacer
    • No Image

      Key Lock on Chasis

      $136.00

      spacer
    spacer
  • Call Stations
    • No Image

      Top & Bottom Call-Send Stations

      $0.00

      spacer
    spacer
  • Orientation (looking UP the staircase)
    • No Image

      The stair lift will be on the left

      $0.00

      spacer
    • No Image

      The stair lift will be on the right

      $0.00

      spacer
    spacer
  • Installation
    • No Image

      NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout

      $0.00

      spacer
    • No Image

      Self Installation

      $0.00

      spacer
    • No Image

      Nationwide Installation

      $599.00

      spacer
    • No Image

      Nationwide Installation and Measurement Service

      $749.00

      spacer
    • No Image

      Double Stair Lift Installation Service - Per Stair Lift

      $437.50

      spacer
    • No Image

      Stair Lift Removal and Disposal

      $499.00

      spacer
    spacer
  • Installation Special Cases
    • No Image

      Installation On Concrete, Steel, or Tile Stairs

      $300.00

      spacer
    • No Image

      Installation In Remote or Limited Access Location

      $345.00

      spacer
    spacer
  • Measurements
    • No Image

      Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.

      $0.00

      spacer
    • No Image

      1. Overall length

      $0.00

      spacer
    • No Image

      2. Top stair to bottom stair

      $0.00

      spacer
    • No Image

      3. Staircase width

      $0.00

      spacer
    • No Image

      4. Bottom clearance

      $0.00

      spacer
    • No Image

      5. Rise of one step

      $0.00

      spacer
    • No Image

      6. Tread of one step

      $0.00

      spacer
    • No Image

      7. Diagonal

      $0.00

      spacer
    • No Image

      8. Door at the top

      $0.00

      spacer
    • No Image

      Need help measuring? Please see our "How to Measure" page.

      $0.00

      spacer
    spacer
